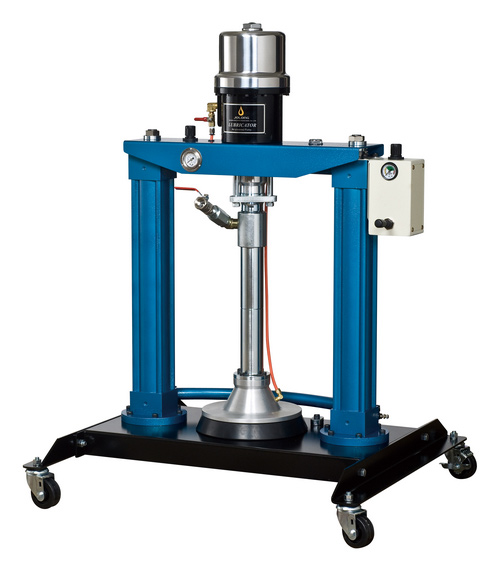

HV102加压式定量黄油机
特点:
(1)双气压缸结构设计,使机器操作更加平稳,作动受力更加平均,流体输出更顺畅。
(2)特殊的压力板设计,能使压力板与容器更能紧密结合,可轻松应对具有锥度之容器及高粘度流体,并可大幅减产容器内部、底部之残余材料。
(3)柱塞式设计无橡胶油封,可抽取润滑脂或油墨等特殊流体物质。
(4)使用气压缸辅助加压,可用于高粘度润滑脂或是一般泵浦不易抽取之润滑脂。
(5)大输出流量设计,适用于各种生产线及大流量者使用。
(6)适用各国厂牌5加仑原装黄油桶。
(7)泵浦本体材质采用铝合金成型。
用油:
(1)一般00#~3#润滑脂均能使用,特殊润滑脂使用请洽本公司。
Feature
(1) cylinder structure design pressure double air, make the machine more stable, the actuating force more average, fluid output more smoothly.
(2) the design pressure plate special, can cause the pressure plate and the container can be more closely combined, can easily deal with taper container and high viscosity fluid, and a significant reduction of residual material inside, at the bottom of container.
(3) the plunger design without rubber seal, extracting grease or ink special fluid substance.
(4) the use of pneumatic cylinder auxiliary pressure, can be used for high viscosity lubricating grease or is generally not easy extraction of lubricating grease pump.
(5) and large output flow design, suitable for various production lines and large flow using.
(6) for each country to make 5 gallons of the original grease bucket.
(7) the pump body is made of aluminum alloy molding.
Grease usage
(1) the general 00#~3# grease can be used, special grease for the company.
型號 Model | 容量 Capacity | 空氣輸入压力 Air Input Pressure | 壓力比 Pressure Ratio | 黃油輸出壓力 Grease Output Pressure | 輸出量 Deliver Rate | 油管長度 Hose Length | 淨重 N.W. | 毛重 G.W. | 材積 CUFT |
HV102 | 20L | 3~7bar 40~100psi | 50:1 | 150~350bar 2000~5000psi | 26g/cycle | - | 90 kgs | 124 kgs | 16.2' |

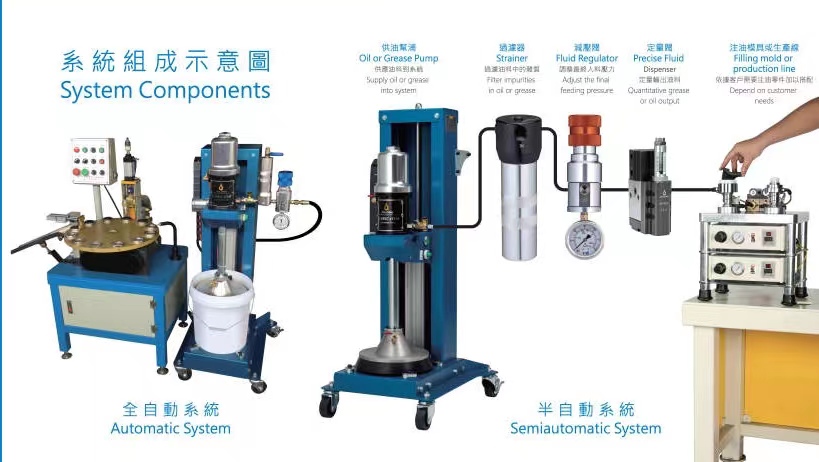

为客户提供全面的定量注油、填充、分装、喷涂方案,满足广大客户的生产需求,大大提高工作效率!克服生产上的重大挑战!
产品优点:定量精准!调节方便!控制简单!提高效率!

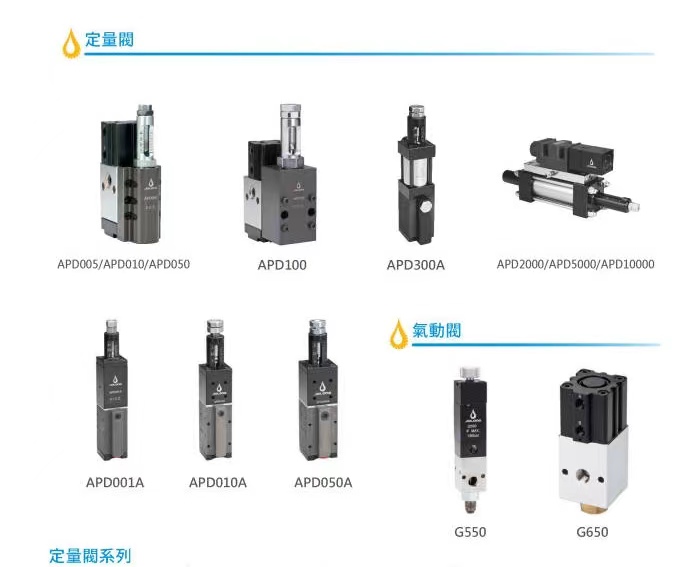

目前公司定量阀型号有0.1克、0.5克、1克、5克、10克、30克、20到200克、100到500克、200到1000克!
可根据客户特殊要求设计专业的配套供油设备系统!详情请咨询
大陆总经销:020-82768907
台湾久隆:886-4-24927009
